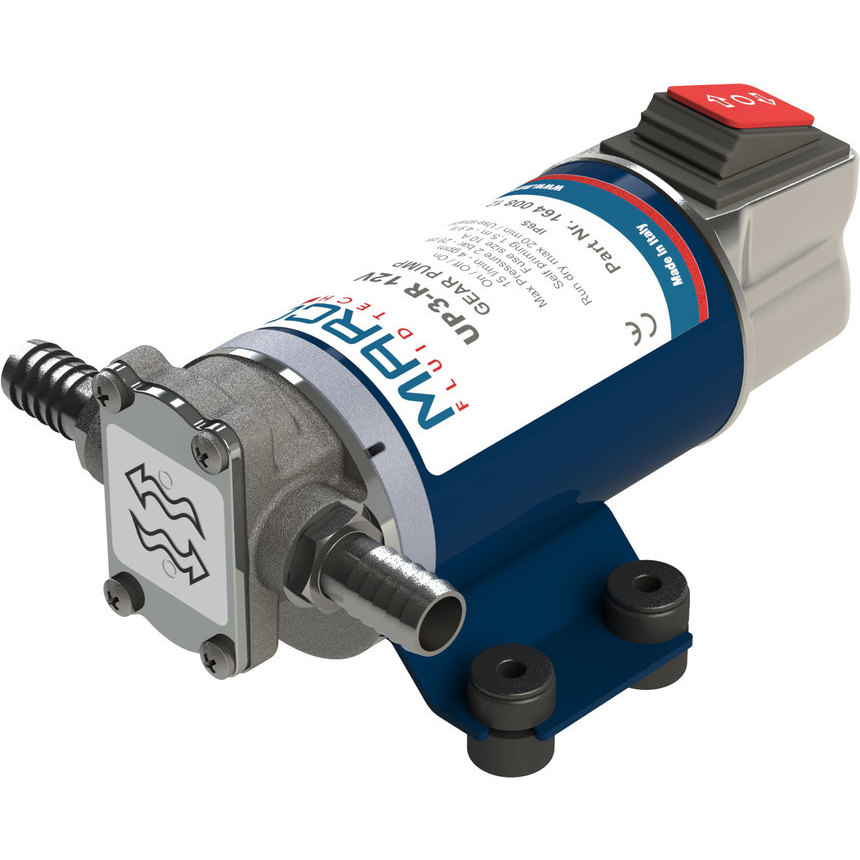

UP3-R gear pump 15 l/min with integr. reversible switch

UP3-R gear pump 15 l/min with integr. reversible switch

Professional range of self-priming electric 12V and 24V pumps for the refueling and transfer of water, light oil and diesel with ON/OFF switch integrated into the water-proof cap. The –R versions are fitted with a 3 positions switch for the inversion of flow direction.
Booklet
Booklet
iFixit
3D Object
Print Product
  • Technical details
  • Accessories
  • Related Products

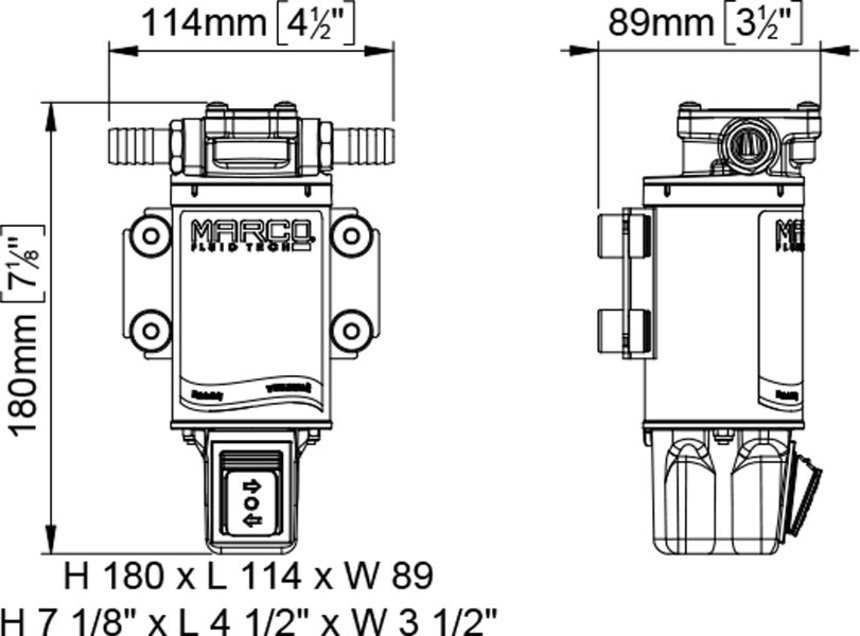

  • Drawing
  • Charts
Part n. Product Name Retail price (€ ea.) Tensione (V)Assorbimento (A)Fusibile (A)Portata (l/min)Adescamento (m)Pressione (bar)O-RingTenutaHzBocche (BSPP)Tubo (mm)Protezione IPPotenza Motore (W)Peso (kg)Cavi (mm²)
16400812 UP3-R Login 12610151,52NBRFKMDC3/8"13651201,8Yes
16400813 UP3-R Login 2437,5151,52NBRFKMDC3/8"13651201,8Yes
