| Part n. | Product Name | Retail price (€ ea.) | Tensione (V) | Assorbimento (A) | Fusibile (A) | Portata (l/min) | Adescamento (m) | Pressione (bar) | O-Ring | Tenuta | Hz | Bocche (BSPP) | Tubo (mm) | Protezione IP | Potenza Motore (W) | Peso (kg) | Cavi (mm²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

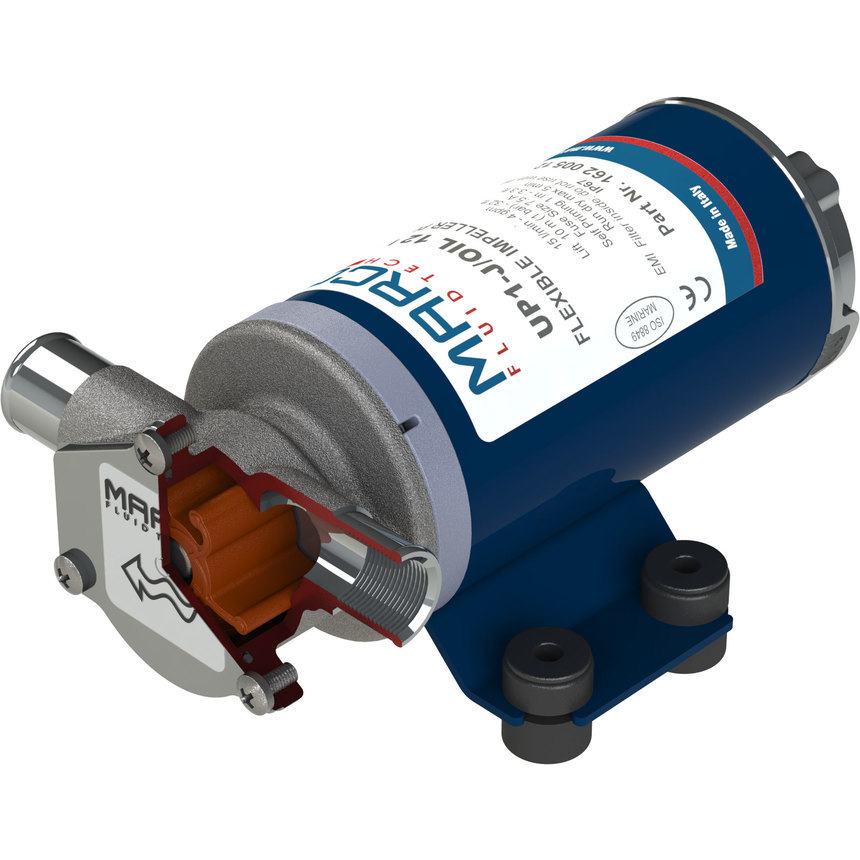

| 16200512 | UP1-J/OIL | Login | 12 | 5 | 7,5 | 15 | 1 | 1 | NBR | FKM | DC | 3/8" | 20 | 67 | 120 | 1,8 | Yes |
| 16200513 | UP1-J/OIL | Login | 24 | 2,5 | 4 | 15 | 1 | 1 | NBR | FKM | DC | 3/8" | 20 | 67 | 120 | 1,8 | Yes |
