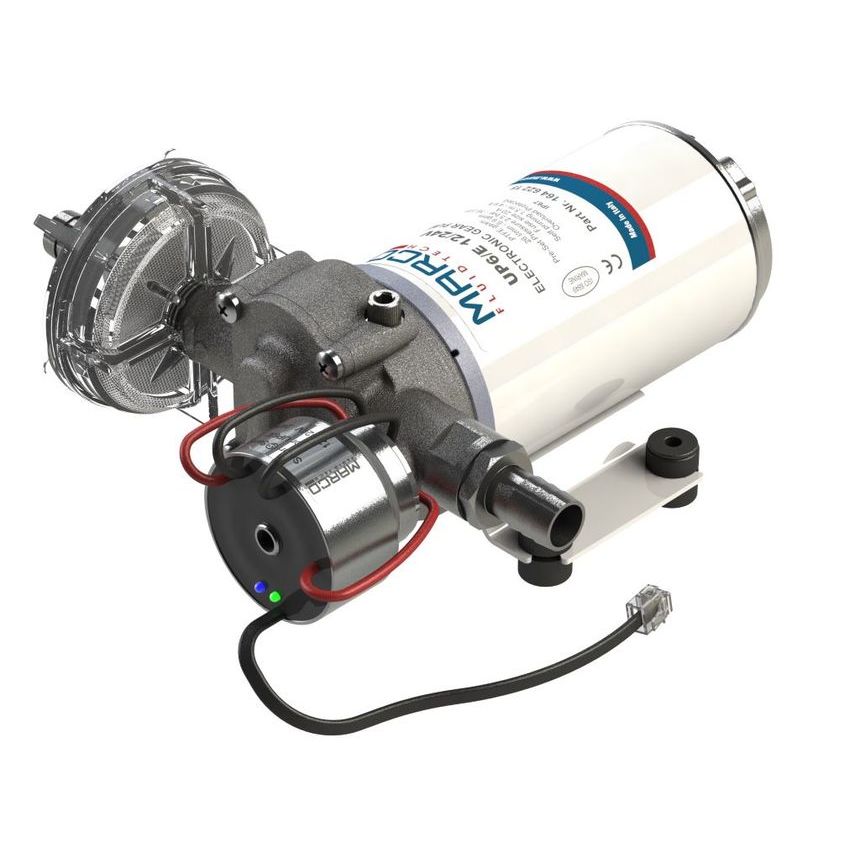

UP6/E electronic water pressure system 26 l/min

UP6/E electronic water pressure system 26 l/min

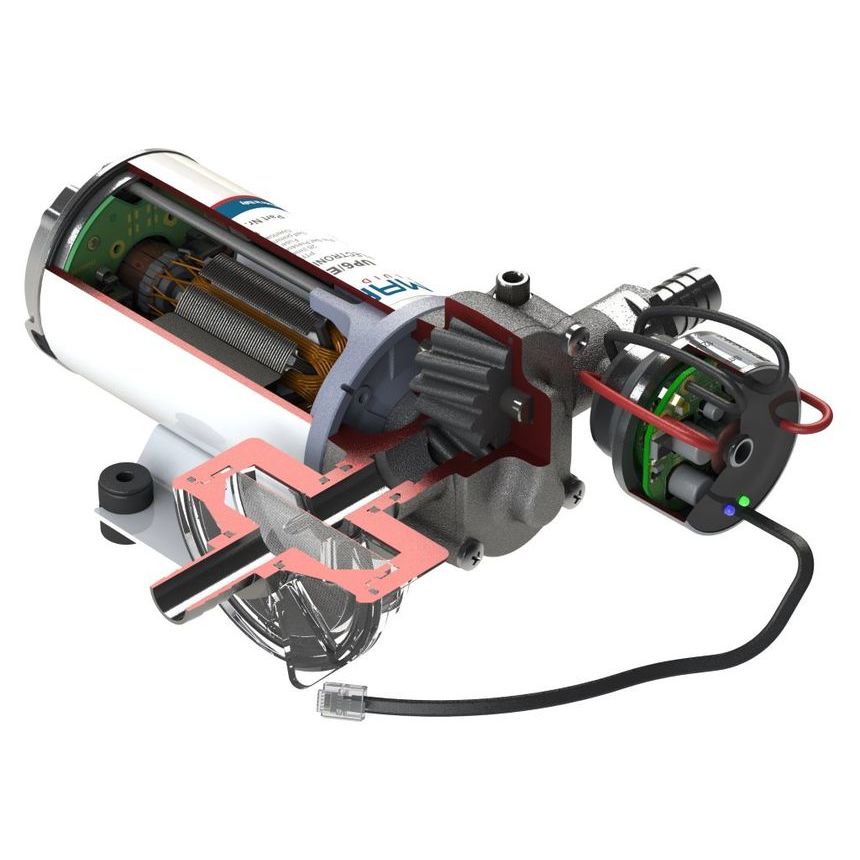

Self-priming automatic electric pump with helical PEEK gears, integrated check valve and electronic control. Nickel-plated brass body and stainless steel shaft. Main applications: fresh water pressure systems and shower kits on boats, rubber dinghies, sailing boats and campers. Available also with control panel.
Booklet
Booklet
Technical documents
iFixit
Video
3D Object
  • Technical details
  • Accessories
  • Related Products
  • Drawing
  • Charts
Part n. Product Name Voltage (V)Consumption (A)Fuse (A)Self-priming (m)Flow rate (l/min)Pressure (bar)Ports (BSP)Hose (ID) (mm)IP ProtectionMotor power (W)Weight (kg)Retail price (€ ea.)
16462213 UP6/E 245101,5263,51/2"16671803,7 Login
16462215 UP6/E 12/2410 / 5201,5262,51/2"16671803,7 Login
