UP10-MS/XC Stainless Steel Pump with Mechanical Seal, PEEK gears 4.75 gpm

Self-priming electric pumps with compact mechanical seal and helical gears in PEEK. The drive shaft is made of AISI316, with a stainless steel body and fittings. Mechanical seal with EPDM or FKM components. The enhanced motor is designed for continuous use under pressure.

Print Product

Technical details
Spare parts

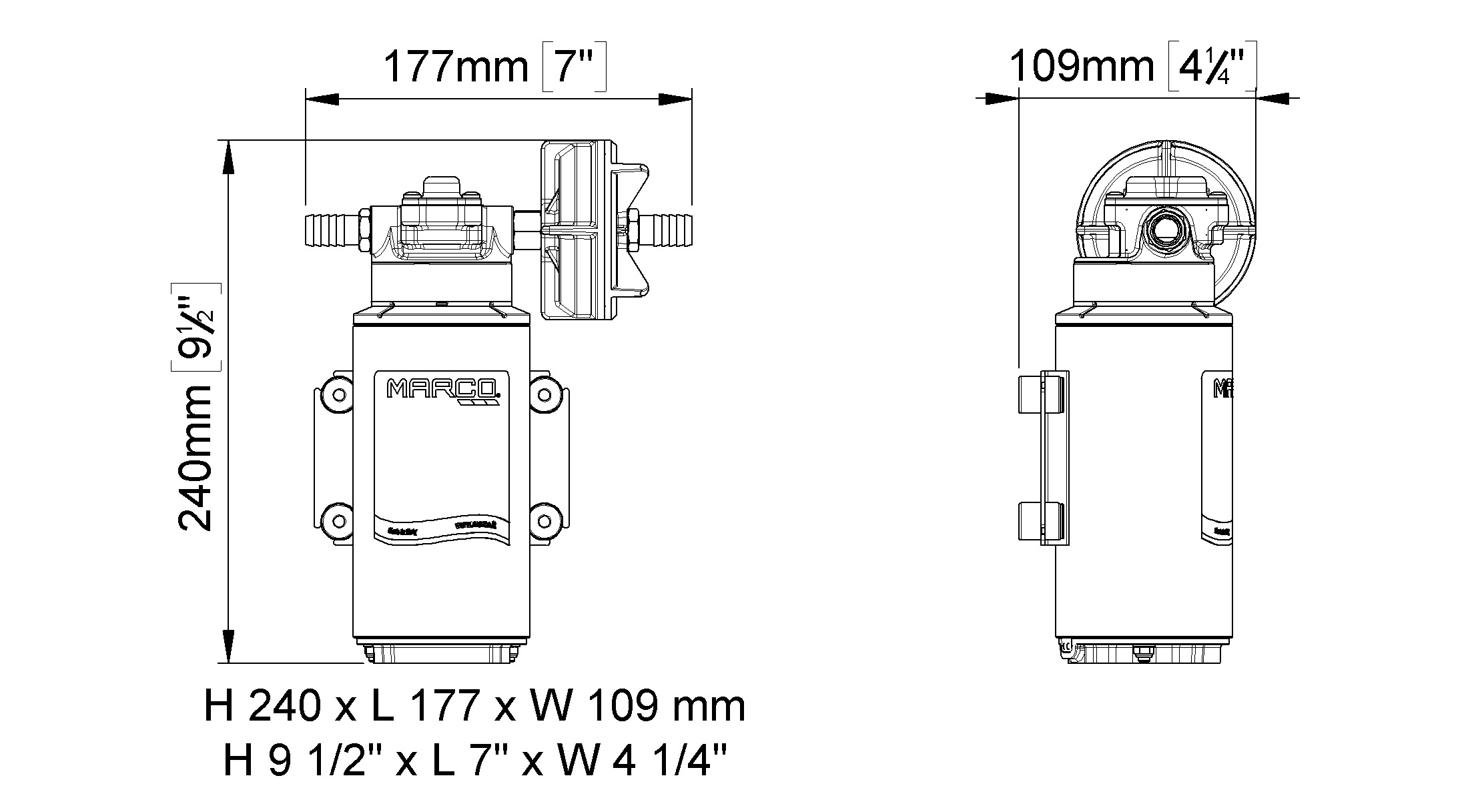

Drawings
Charts

Part n.	Product Name	Retail price (€ ea.)	Voltage (V)	Consumption (A)	Fuse (A)	Flow rate (gpm)	Self-priming (ft)	Pressure (psi)	O-Ring	Seal	Hz	Ports (BSPP)	Hose (in)	IP Protection	Motor power (W)	Weight (lb)
1E440112	UP10-MS/XC	Login	12	30	35	4.8	9.8	116	EPDM	EPDM	DC	3/8"	0.5	67	360W	8.4
1E440113	UP10-MS/XC	Login	24	15	20	4.8	9.8	116	EPDM	EPDM	DC	3/8"	0.5	67	360W	8.4
1F440112	UP10-MS/XC	Login	12	30	35	4.8	9.8	116	FKM	FKM	DC	3/8"	0.5	67	360W	8.4
1F440113	UP10-MS/XC	Login	24	15	20	4.8	9.8	116	FKM	FKM	DC	3/8"	0.5	67	360W	8.4
