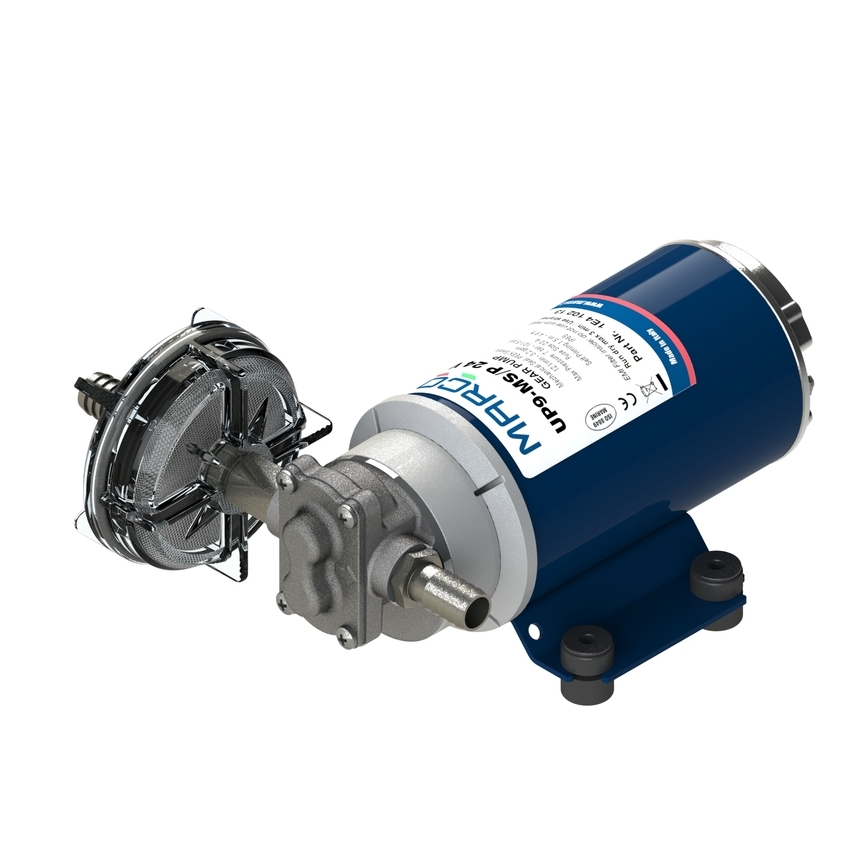

UP9-MS/P Pump with Mechanical Seal, PEEK gears 3.17 gpm

Self-priming electric pumps with compact mechanical seal and helical gears in PEEK. The motor shaft is made of AISI316, with a nickel-plated brass body. Mechanical seal with EPDM or FKM components. The enhanced motor is designed for continuous use under pressure.

Print Product

Technical details
Spare parts

Part n.	Product Name	Retail price (€ ea.)	Voltage (V)	Consumption (A)	Fuse (A)	Flow rate (gpm)	Self-priming (ft)	Pressure (psi)	O-Ring	Seal	Hz	Ports (BSP)	Hose (ID) (in)	IP Protection	Motor power (W)	Weight (lb)
1E410212	UP9-MS/P	Login	12	18	25	3.2	9.8	87	EPDM	EPDM	DC	3/8"	0.5	67	220	6.2
1E410213	UP9-MS/P	Login	24	9	15	3.2	9.8	87	EPDM	EPDM	DC	3/8"	0.5	67	220	6.2
1F410212	UP9-MS/P	Login	12	18	25	3.2	9.8	87	FKM	FKM	DC	3/8"	0.5	67	220	6.2
1F410213	UP9-MS/P	Login	24	9	15	3.2	9.8	87	FKM	FKM	DC	3/8"	0.5	67	220	6.2
